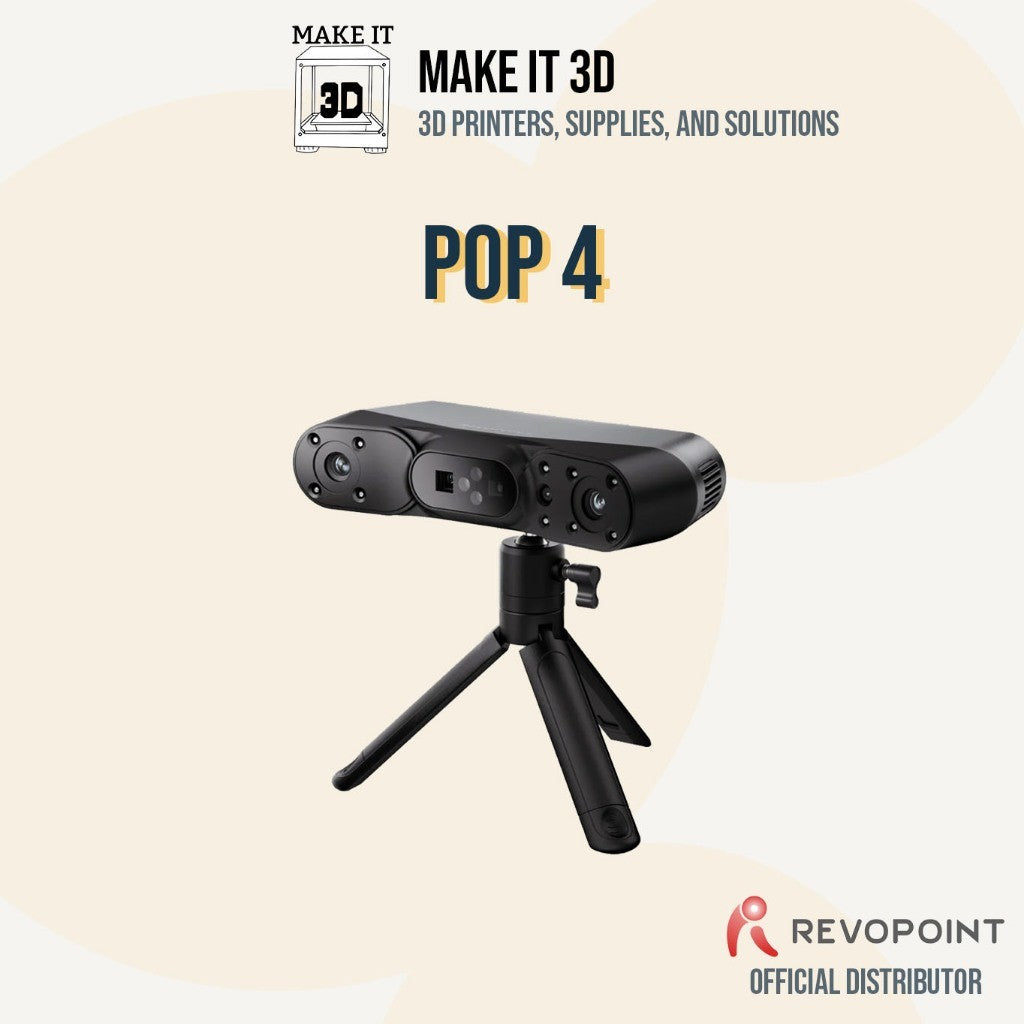

Revopoint POP 4 5-in-1 3D Scanner with Blue Laser and Infrared Light

Revopoint POP 4

- Scanning Type: Handheld and desktop

- Technology: Blue multi-line laser, near-infrared full-field structured light, and VCSEL structured light

- Scannable object size: Small to medium

- Single-frame accuracy:

> line laser accuracy: 0.03mm

> Full-field structured light accuracy: 0.08mm

> VCSEL structured light accuracy: 0.1mm @ 300-500mm, 0.2mm @ 500-800mm

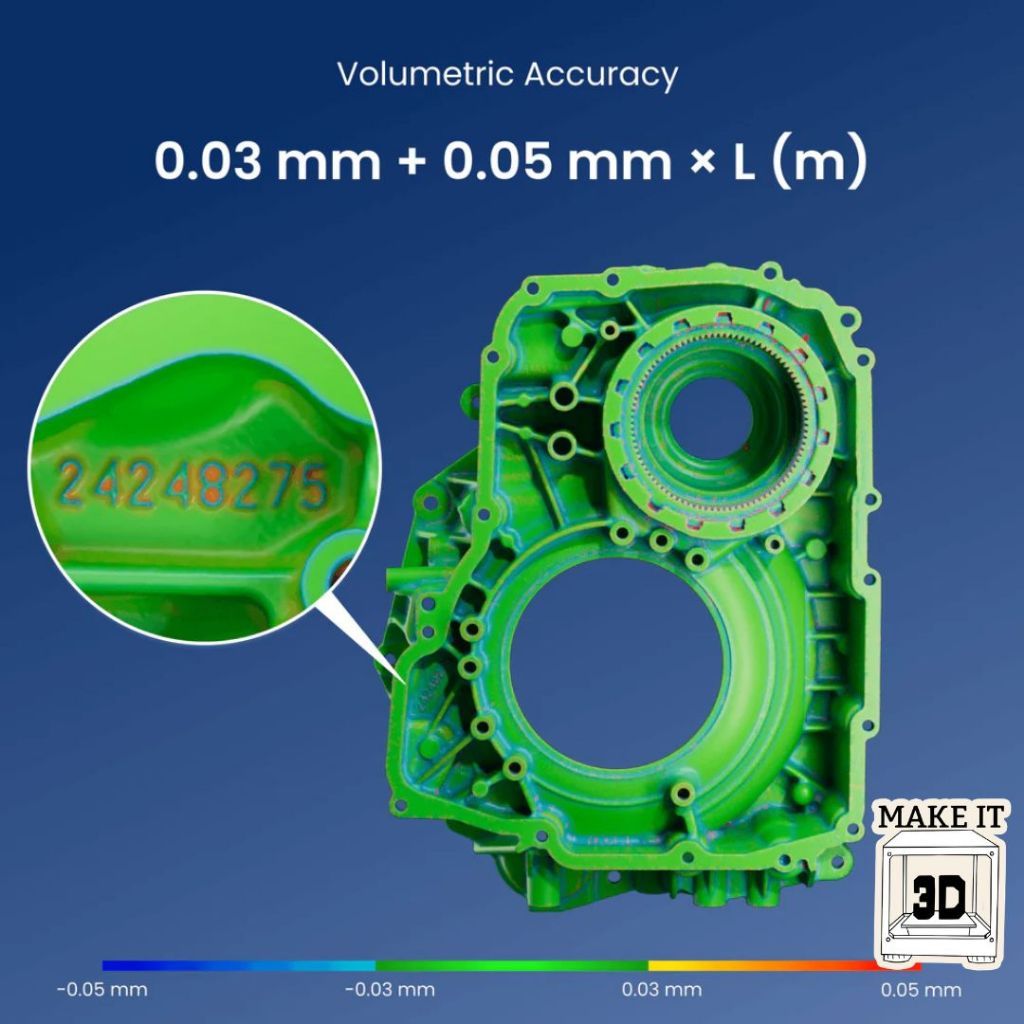

- Volumetric accuracy: 0.03mm + 0.05mm x L(m) where L is the length of the object

- Fused point distance: up to 0.05mm

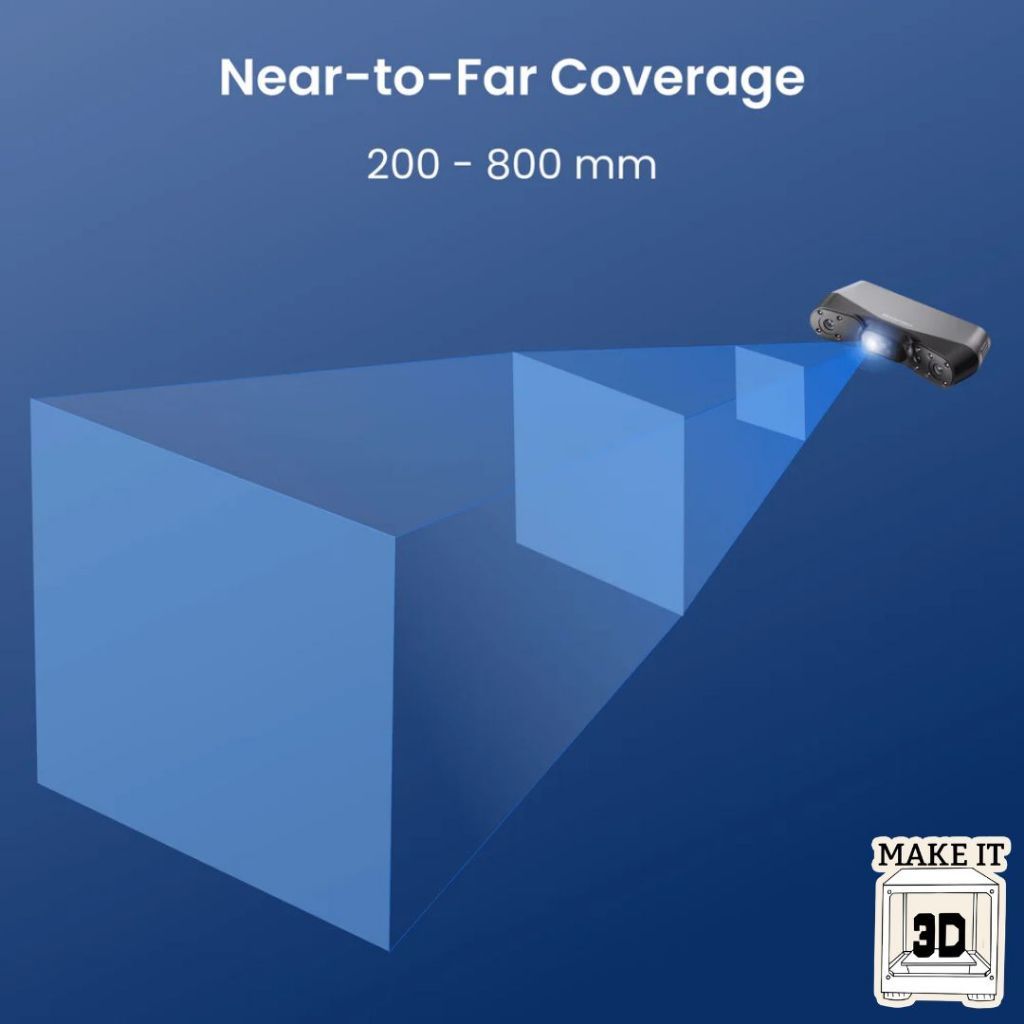

- Working distance: 200-400mm (multi-line laser mode), 250-500mm (full-field HD mode and hybrid mode), 300-800mm (VCSEL mode)

- Single capture area at nearest distance: 131x134mm at 200mm

- Single capture area at furthest distance: 312x269mm at 400mm (multi-line laser, full-field), 505x538mm at 800mm (VCSEL mode)

- Angular field of view (HxV): 46x37

- Minumum scan volume: 10 x 10 x 10mm

- Maximum scan volume: 2 x 2 x 2m

- Maximum scanning speed:

> Multi-line laser scan: 105fps (NVIDIA GPU), 60fps (CPU)

> Full-field structured light scan: 20fps

> VCSEL structured light scan: 30fps

- Point return rate: 2,000,000 points/s (multi-line laser), 5,000,000 points/s (full-field structured light scan)

- RGB Camera resolution: 1.3MP

- Color scanning: yes

- Tracking methods: feature, marker, global marker, color

- Outdoor scanning: Multi-line Laser ≤ 50,000 lux, VCSEL ≤ 100,000 lux

(When using the multi-line laser mode with an outdoor filter, scanning is possible in lighting conditions of up to 100,000 lux.)

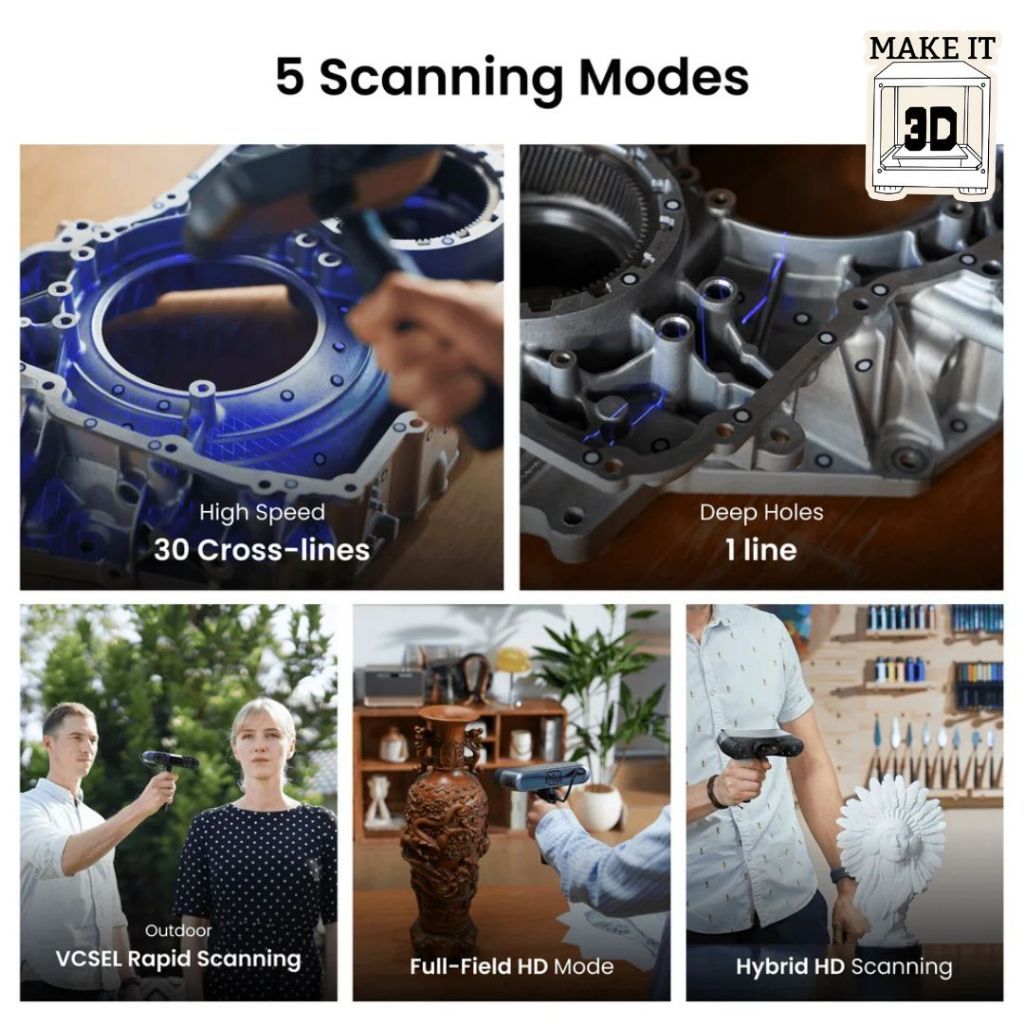

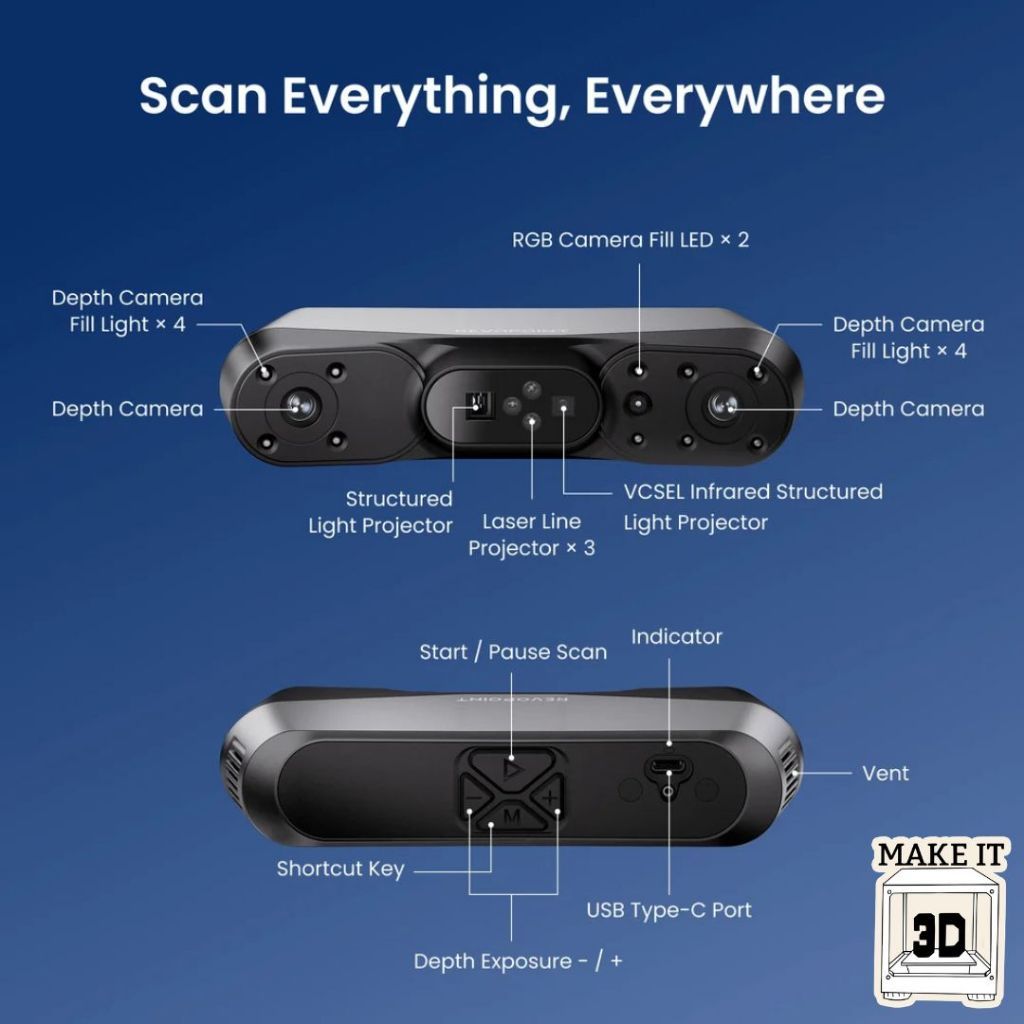

- 3D light source: 30 Blue Cross Laser Lines, 1 Blue Single Laser Line (Deep-Hole Mode), Near-Infrared Full-field Structured Light, Near-Infrared VCSEL Structured Light

- Fill lights: 8 (4 infrared LEDS + 4 Blue LEDs)

- White flash LEDS: 2

- Built-in chip computing: depth map computing

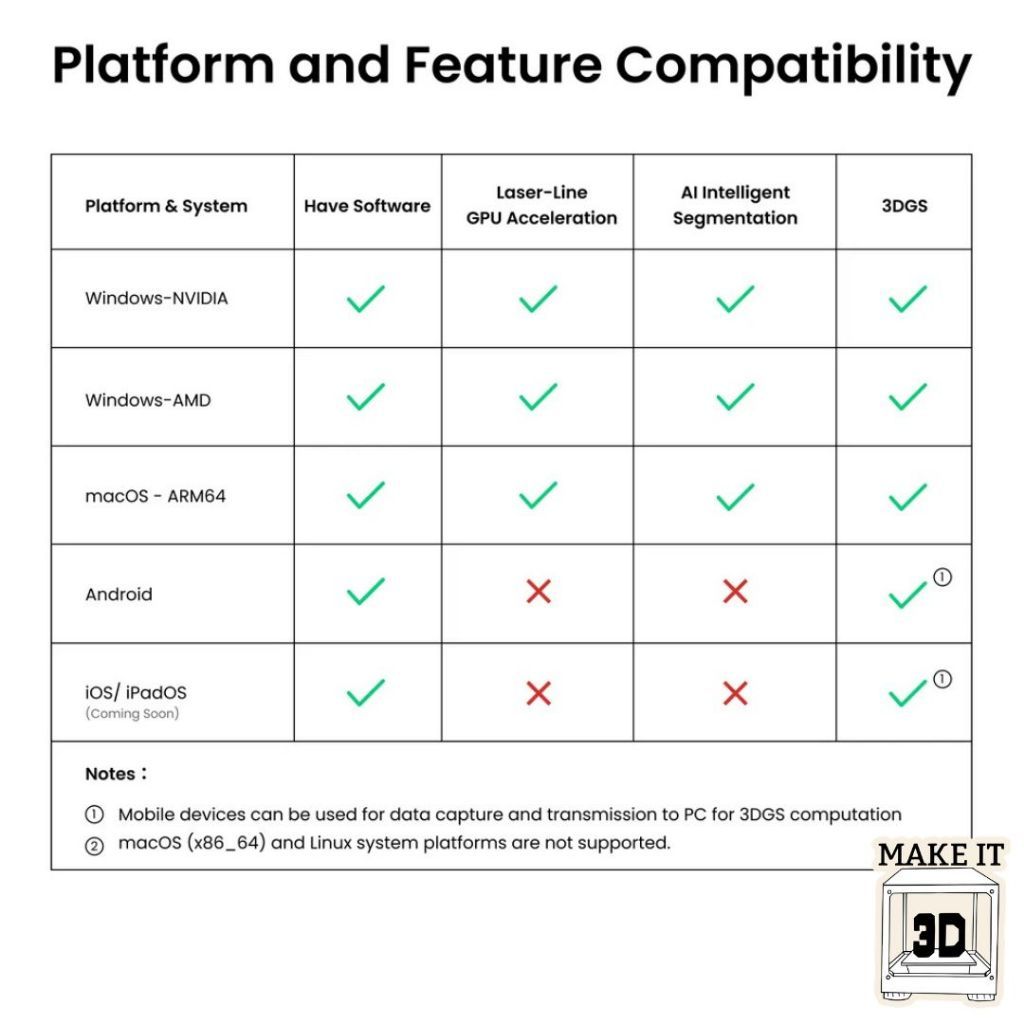

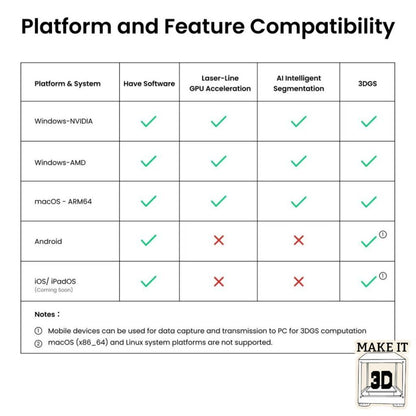

- Minimum PC requirements: macOS (CPU: Mi Pro/Max/Ultra, RAM: >=16GB); Windows (CPU: Intel i& 13th gen or AMD Ryzen 7 5800, RAM >=16GB, GPU: NVIDIA GeForce RTX 3060 8GB)

- Recommended PC requirements: macOS (CPU: M3 Pro/Max/Ultra or better, RAM >=24GB); Windows (CPU: Intel i9 12th Gen or better, RAM: >=32GB, GPU: NVIDIA RTX 4060 8GB or better)

- Output file formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat

- WiFi: 6

- Bluetooth: 4.1

- Connector Type: Type-C to Type-C USB 3.0

- Power requirements: DC 5V, 2A

- Scanner weight: 286g

- Dimensions: 160 x 30 x 72mm

- User recalibration: yes
