Revopoint Metro Y Ultra high-performance wireless 3D scanner Philippines

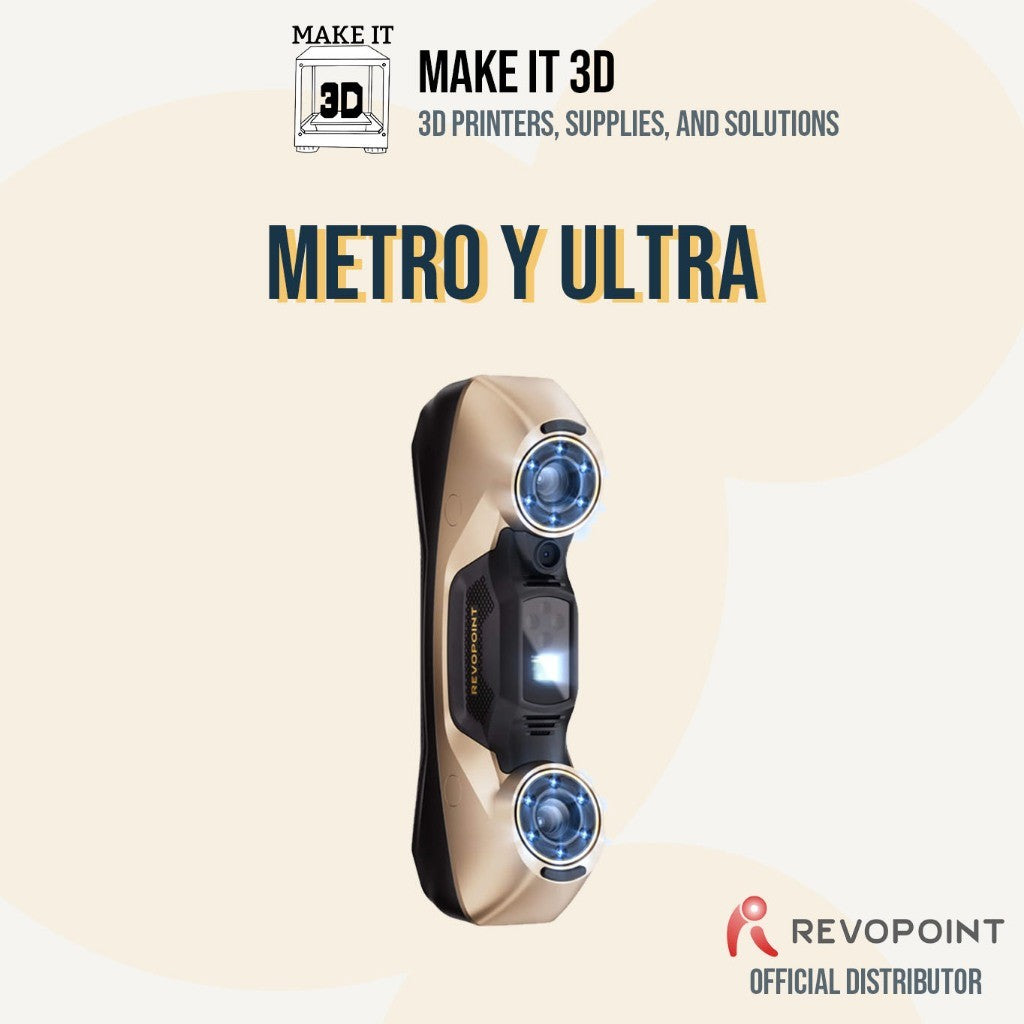

Revopoint Metro Y Ultra

- Scanning type: handheld and desktop

- Technology: Multi-line laser scan and full-field structured light scan

- Scannable object size: small to medium

- Single-frame precision: up to 0.01mm

- Single-frame accuracy: up to 0.015mm

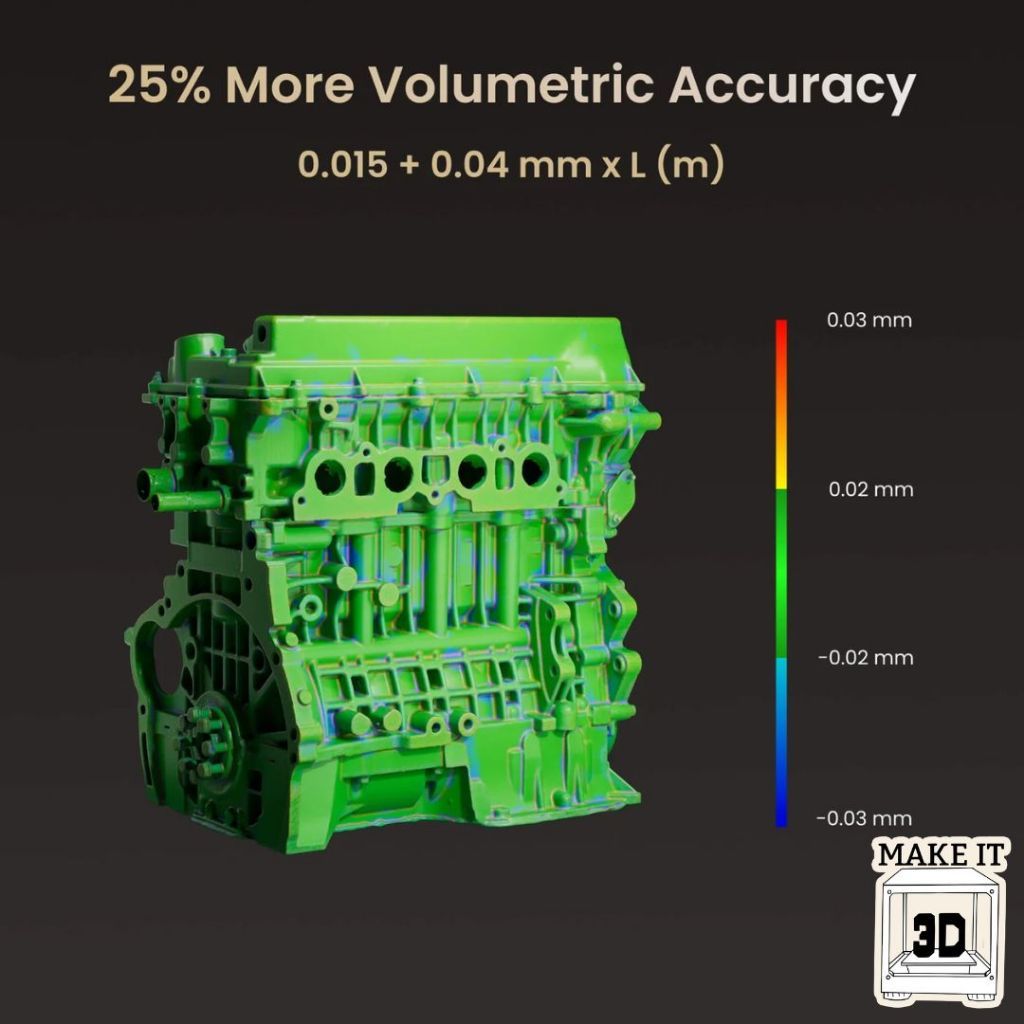

- Volumetric accuracy: 0.015mm + 0.04mm x L (m) where L is the length of the object

- Fused point distance: up to 0.05mm

- Working distance: 200-400mm

- Single capture area at nearest distance: 152 x 138mm at 200mm

- Single capture area at furthest distance: 332 x 276mm at 400mm

- Angular field of view (H x V): 49 x 38

- Minimum scan volume: 10 x 10 x 10mm

- Maximum scan volume: 2 x 2 x 2m

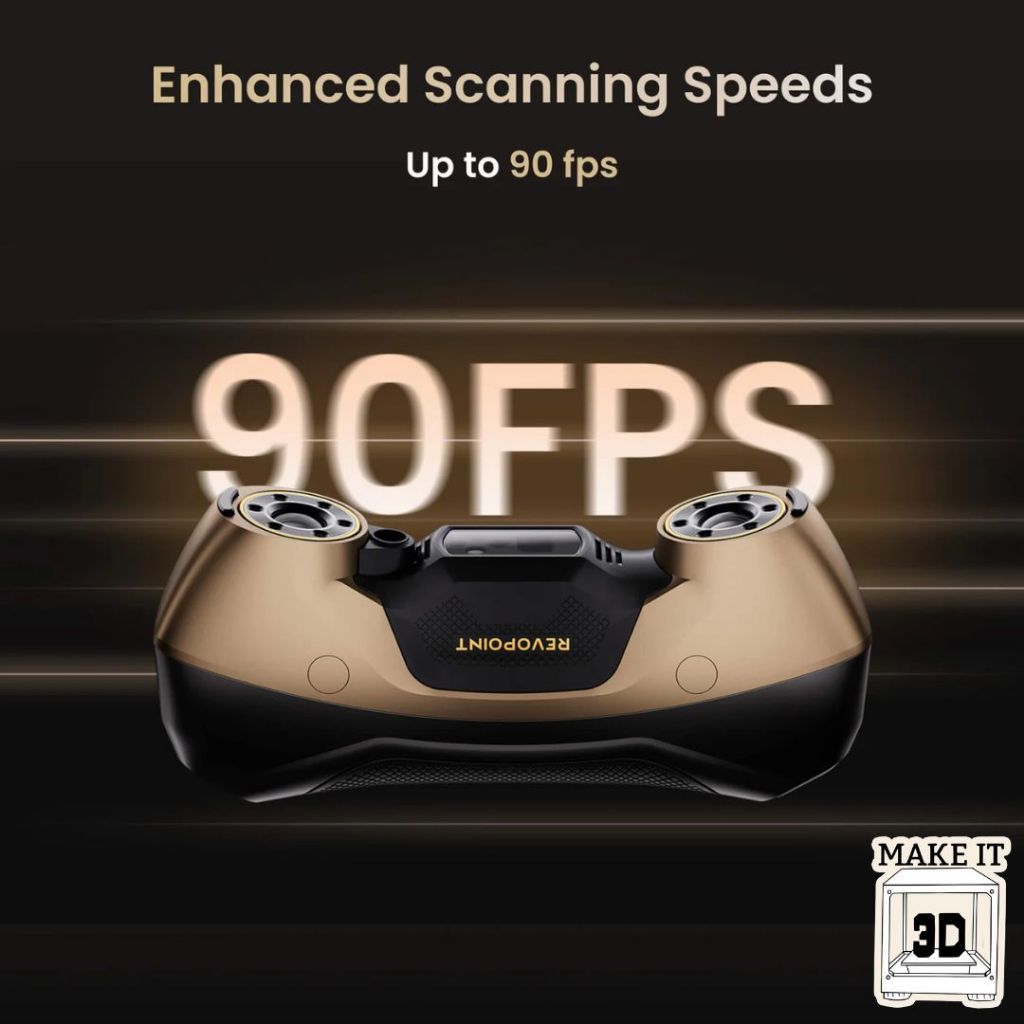

- Scanning speed: up to 90fps (NVIDIA GPU), or up to 60fps (CPU)

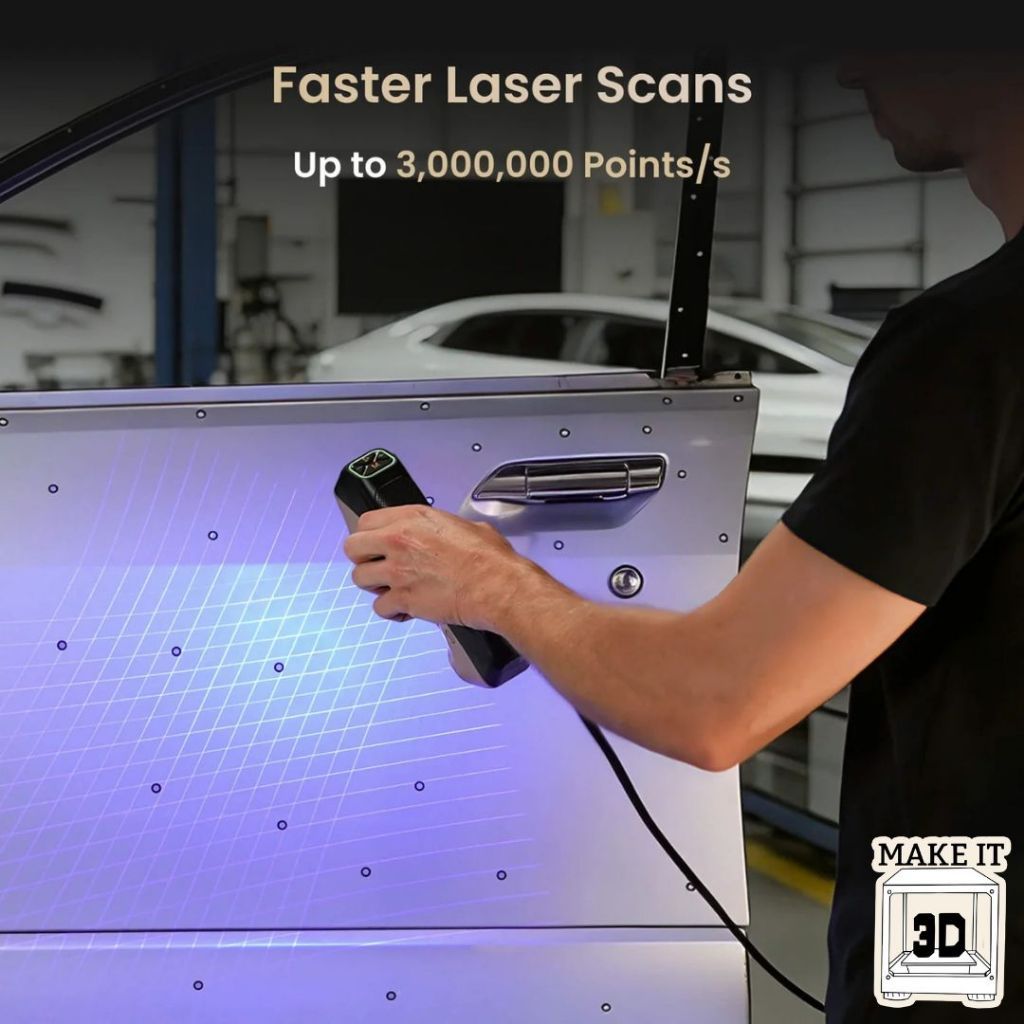

- Point return rate: 3,000,000 points/s (multi-line laser scan); 7,000,000 point/s (full-field structured light scan)

- RGB camera resolution: 2MP

- Color scanning: only in auto turntable mode

- Tracking methods: marker, global marker, feature

- Outdoor scanning: up to 100,000 lux

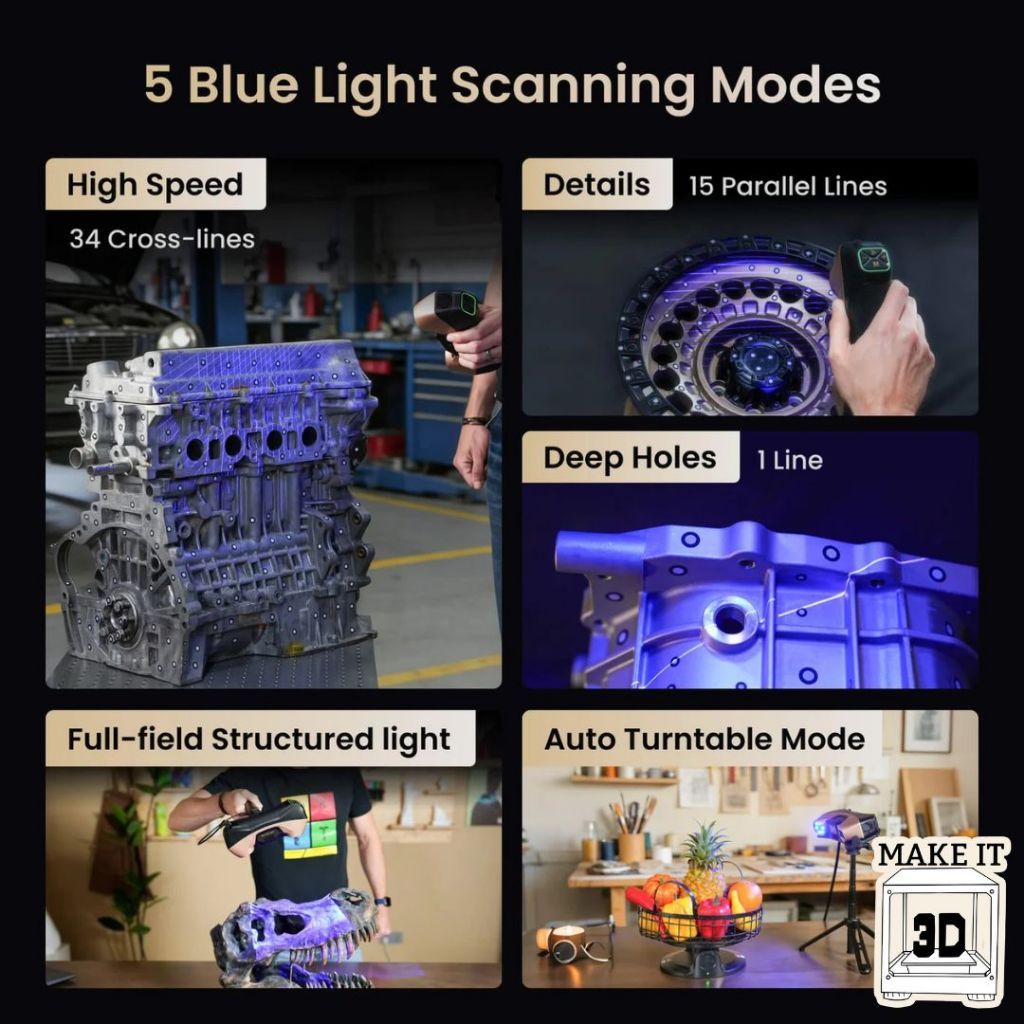

- 3D light source: 34 blue cross laser lines, 15 blue parallel laser lines, 1 blue deep hole single laser line, 62 line blue full-field structured light

- Fill lights: 12 blue LEDs

- CPU: 4 core ARM, 2.0GHz

- Built-in chip computing: depth computing

- Minimum PC requirements: macOS (CPU: M2 Pro, RAM: >=16GB); Windows (CPU: intel i7 13th gen or AMD Ryzen 7 5800, RAM: >=32GB, GPU: NVIDIA GeForce RTX 3060 8GB)

- Recommended PC requirements: macOS (CPU: M4 Pro or better, RAM: >= 24GB); Windows (CPU: intel i9 12th gen or better, RAM: >=64GB, GPU: NVIDIA RTX 4060 8GB)

- Output file formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

- WiFi: 6

- Connector Type: USB Type-C to Type-C

- Power requirements: DC 12V, 3A

- Scanner weight: 450g

- Dimensions: 211 x 94 x 47mm

- User recalibration: yes

- Power bank capacity: 5500 mAh
